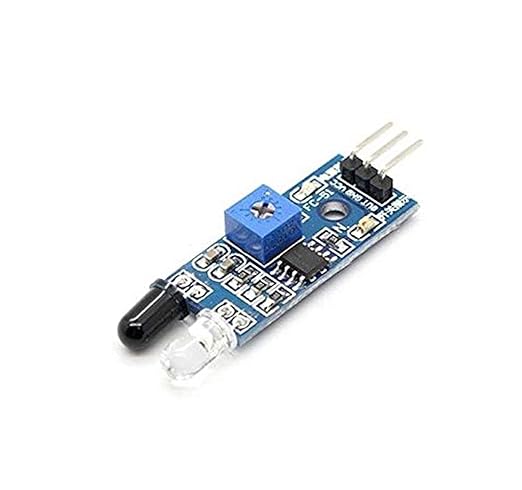

IR Infrared Obstacle Avoidance Sensor Module for Smart Car Robot 3-wire, IR Sensor, ir sensor module

Original price was: ₹499.00.Current price is: ₹136.00.

  • It Can be used for 3-5V DC power supply modules. It has red power indicator.
  • IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on
  • The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay

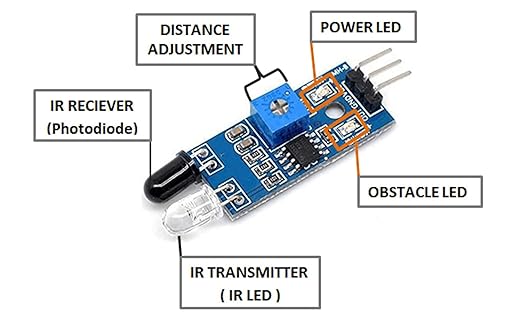

  • It has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal).
  • Obstacle sensing LED and Power LED

50 in stock

Category:

Description

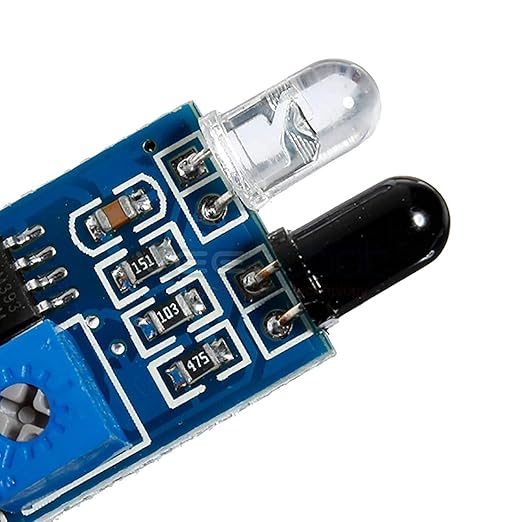

Infrared Obstacle Avoidance IR Sensor Module has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life

Application Of IR Sensor:

  • Can be used to detect obstacles
  • Can be used as a switch upon detection
  • Burglar Alarm Circuit using IR Sensor
  • Can be used as object Counter
  • Industrial safety devices
